Product

QP-T405SLT

Product Image

MODEL QP-T405SLT
Diameter (mm) Suction x Discharge 100×100
Maximum head (m) 115
Maximum flow capacity (L/min) 795
Packing dimension (mm, L x W x H) 950×730×860
Gross weight（kg） 127
Engine Hose power（PS) 9.5 ～ 11.8
Engine manufacturer Honda

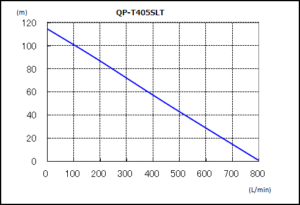

Performance

Information

  • Fire fighting pumps including village protection.
  • Fast fill tanker applications.
  • High pressure water transfer.
  • Wash and flush stock crate cleanout.
  • Tanker batter spray.
  • Construction site dust suppression.

Feature

  • QP-T405SLT delivers superb fuel efficient performance through Twin closed style impellers, making it possible to produce such super high pressure as o.94Mpa(9.5kgf/cm²).
  • Great performance with 795 LPM (210 GPM) flow and a maximum head of 115 meters (377 feet).
    For moving water upwards or over a long distance, the QP-T405SLT is the best choice for you.
  • ・an oil-bath silicon/silicon mechanical seal.
    ・electric start.
    ・large 18 liter (4.7 gallon) fuel tank.
    ・full wraparound pipe frame.
    ・a 3-way discharge manifold with one 4″ and 2 each 3″discharge ports.
    ・2-stage closed impeller system.
