QP-BH205S

Product Image

MODEL QP-BH205S
Diameter (mm) Suction x Discharge 50×50
Maximum head (m) 75/4000rpm
Maximum flow capacity (L/min) 400/4000rpm
Packing dimension (mm, L x W x H) 430×335×430
Gross weight(kg) 13.3
Engine Hose power(PS) 4.5kw(6.0hp)/4000rpm
Engine manufacturer

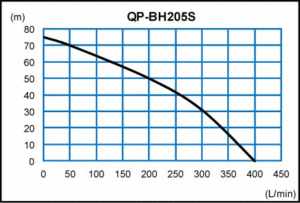

Performance

Information

  • Water fill up in water tank and water transfer from tank to tank on trolley.
  • Long distance discharge.
  • Water jetting.
  • High head general water transfer

Feature

  • Separate pedestal type for easy mounting to any of your prime mover as well as for easier maintenance.
  • Very light and compact, but powerful performance producing 0.73Mpa(7.5kgf/cm2) pressure and 400liter per minute.
  • A variety of different size of single or 3 way discharge port changeable makes your choice widen for your application.
