Product
QP-BH205L
Product Image
| MODEL | QP-BH205L |
| Diameter (mm) Suction x Discharge | 50×50 |
| Maximum head (m) | 50/4000rpm 41/3600rpm |
| Maximum flow capacity (L/min) | 620/4000rpm 580/3600rpm |
| Packing dimension (mm, L x W x H) | 410×310×465 |
| Gross weight（kg） | 12.5 |
| Engine Hose power（PS) | 5.2kw(7.0hp)/4000rpm 3.7kw(5.0hp)/3600rpmrpm |
| Engine manufacturer | – |

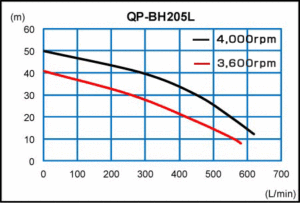

Performance
Information
- Water fill up in water tank and water transfer from tank to tank on trolley.
- Long distance discharge.
- High head general water transfer.
- To assist pulling lotus-roots up with its strong discharge water force from the bottom of ｌouts pond.
Feature
- 2″ high head pedestal pump painted in powder coating for anti corrosion.
- Separate pedestal type for easy mounting to any of your prime mover as well as for easier maintenance.
- Very light and compact, but powerful performance producing 0.49Mpa(5kgf/cm2) pressure and 620liter per minute.
- A variety of different size of single or 3 way discharge port changeable makes your choice widen for your application.
