Product
QP-205S
Product Image
| MODEL | QP-205S |
| Diameter (mm) Suction x Discharge | 50×50 |
| 3 way discharge port type Diameter (mm) Suction x Discharge |
Inlet Diameter (mm)50 Outlet Diameter (mm) １inch（25）×2 / １.5inch（40）×1 |
| Maximum head (m) | 75 |
| Maximum flow capacity (L/min) | 400 |
| Packing dimension (mm, L x W x H) | 525 x 385 x 430 |
| Gross weight（kg） | 34 |
| Engine Hose power（PS) | 4.8～6.3 |
| Engine manufacturer | MEiKi Power, Honda The photo shows:Honda engine mounted. |

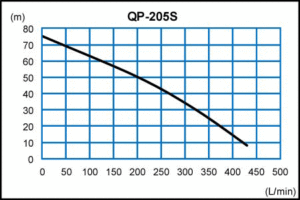

Performance
Information
- Lawn sprinkling & agricultural spraying.
- Long hose run discharging.
- High pressure cleaning.
- Water fill up in water tank & water transfer from tank to tank on trolly.
- Fire fighting.
Feature
- Matsusaka designed closed impeller and inner volute produces such high pressure and discharge volume as 0.74Mpa(7.5kgf/cm2) and 400 litre per minute.
- For easy handling or stacking, wrapround rollover frame is equipped.
- A variety of different size of Single or 3 way discharge port changeable makes your choice widen for your application.
- Standard closed impeller is made of aluminum cast but bronze/brass made impeller available at option.
